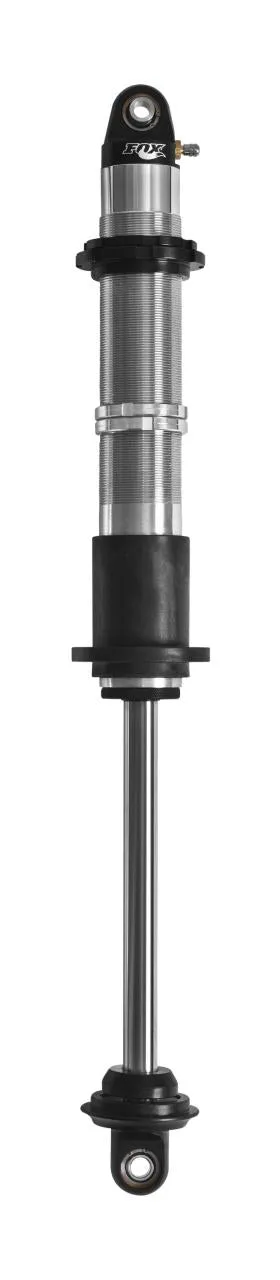

Fitment Information

• Universal


Specs & Features

• Sold individually
• Body: Smooth bore and honed seamless steel

• Body Plating: Zinc plated for a long-lasting finish

• Components: Black anodized, CNC machined 6061-T6 billet aluminum

• Piston: 7075 hard-anodized high-flow aluminum piston*

• Valving: Tunable, velocity sensitive deburred valve shims

• Seals: High-temp Viton redundant sealing pack system with main seal, wiper seal and scraper seal*

• Shafts: Chrome steel

• Bearing: Spherical, PFTE-lined, heat-treated alloy steel

• Spring: Not Included

• Options: Custom compression and rebound valving available (Add -1 to end of part number)

• Adjustments: Spring preload ring / Dual stage crossover ring
• Extended: 25.430

• Compressed: 17.430

• Travel: 8

• Top Mount: Eyelet

• Bottom Mount: Eyelet

• Reservoir: Emulsion

• Mounting: 1/2 x 1.25

• Valving: 50/70


Product Description

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

Redline360 sells only genuine and authentic FOX products.
